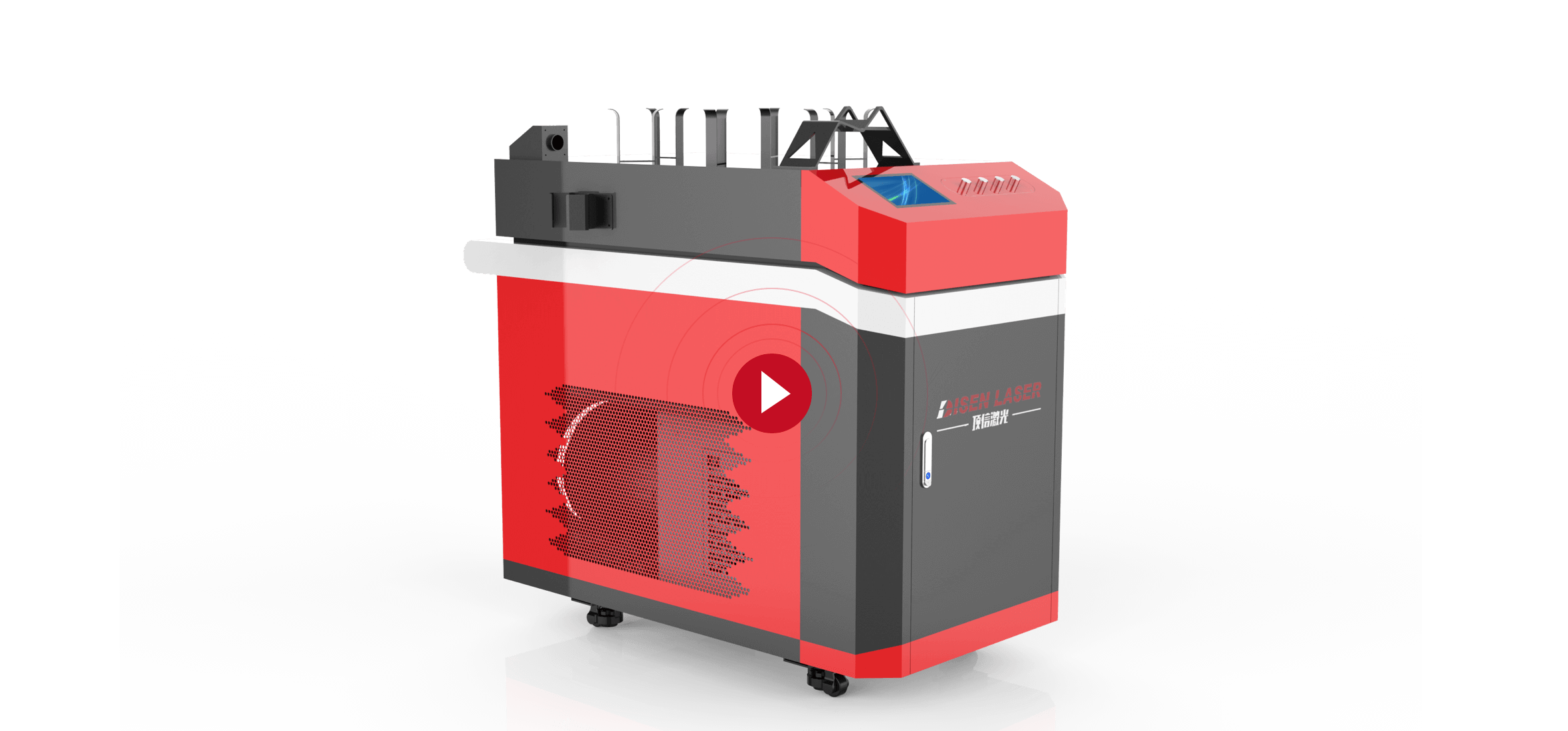

Hand-held laser welding machine, using infrared precise positioning, is flexible and convenient to make firm metal welding. The welding process leaves either no residues or consumables. The welding seams is not easy to deform, which is widely applied to welding large and medium-size workpieces, like cabinets, door and window frames, stairs, elevators, stainless steel furniture, chassis, etc.. With various power, it can realize long-distance spot welding, full welding, continuous welding, sealed welding, etc., which will be a great helper for your metal design.
Fiber-Optic Laser
The service life of the laser can be more than 10 years. With little energy consumption but low failure rate, the machine will be the most economic type for home-made designer. We applied flexible optical fiber from 5-20m and also a rigid protective layer, which can realize outdoor welding with no worries of air pullution.
Hand-Held Swing Welding Head
• To solve the limitation of the stroke space of the workbench, the front positioning head made of copper can be replaced, and the focusing head can be telescopic and focused, and the rear protective tube sleeve can ensure line safety.
• Touch switch control and optional swing range, the large gap can be easily welded. Dead weight bearing can be up to 1.5kg, and ergonomic deisng guarantee good hand feeling.
• Standard automatic wire feeding with customizable thickness. Adjustable feeding speed, and the gun head is moved by the ribbon to advance at a uniform speed steadily.
Touch Screen Panel + Button Control
With the panel, the operation will be intuitive and convenient with a clear understanding of the production situation and responding to emergencies.
Infrared Precise Positioning
With welding head position proof-reading and welding position verification function, the welding position is more accurate, and the welding seam is smooth and beautiful.
Ergonomics
With welding head position proof-reading and welding position verification function, the welding position is more accurate, and the welding seam is smooth and beautiful.
This is a new type of metal welding technology, which has low technical requirements for skilled workers. It only needs light grinding and light polishing to produce exquisite effects, which is firm and reliable. It is another new welding method that reduces labor costs and increases production efficiency.
Fiber laser hand-held welding machine can weld 0.4-5.0mm thick stainless steel, galvanized sheet, iron sheet, copper, aluminum and other metal materials.
It is conservative to say that you can have 3 welding technicians, and you can have a 1-2 years welding master when you just get started. Of course, practice makes perfect, it depends on where your workers' comprehension ability can reach.
Yes, 0.8-1.0 for 1000 watts, 0.8-1.2 for 1500 watts.
Equipment Using Advantages
√Easy to operate for both beginners and professionals to save your labor cost!
With the help of visual touch scree, the machine operation is simple and convenient, which will save your time on personnel trainning and save your budget on operator recruitment. Also, the hand-held fast positioning welding process requires no need to move the workpieces to improve working efficiency.
√ No deformation and rupture, causing no harm to your materials!
Fast laser welding technique to connect and stick the seams efficienctly, which cause no structure distortion to your design and style!
√Clean and hygienic work, make your work environmental-friendly!
Use the laser to melt down the metal so to realize welding, this hand-held laser welding machine works with no smoke, glare and ultra-low noise. And regardlessof the metal size, it can always process well accurately and efficienctly.
Comparison Item
Traditional Welding
Laser Welding
Continuous Laser Welding
Heat Input
Very high
Low
High
Deformation and Undercut of Workpiece
Big
Small
Small
Bond Strength With Base Material
General
Good
Very good
Polished
Polished
No sanding required or little
No sanding required or little
Welding Speed
General
More than twice that of argon arc
More than twice that of argon arc
Supplies
Much
Few
Few
Applied Material
Stainless Steel,Carbon Steel,Galvanized sheet
Stainless Steel,Carbon Steel,Galvanized sheet
Stainless Steel,Carbon Steel,Galvanized sheet
Operation Difficulty
Comlicated
General
Easy
Operator Safety
Unsafe
Safe
Safe
Environmental Impact
Not environmentally
Environmental Friendly
Environmental Friendly
Welding Fault Tolerance
Good
Not Good
Good
Weaving Welding
No
No
Yes
Adjustable Light Spot Width
No
No
Yes
Welding Quality
Bad
General
Good
Technical Parameter
Model
HJ series
Laser Power
1000W/1500W/2000W
Laser Wavelength
1070 NM
Fiber Length
Standard 10m
Way of Working
Continuous/ Modulation
Welding Speed
0~120 mm/s
Recommended Welding Thickness
0.5-5mm
Welding Gap
≤0.5mm
Cooling System
Horizontal Water-cooling Unit
Power Consumption
5-8KVA (depend on laser power)
Working Environment Temperature
15~35 ℃
Working Environment Humidity
<70% without condensation
Demission
1300*1200*800mm
Overall Weight
200kg
Power Requirement
380V/ 50Hz
Protection Class
IP54
*The above data are for reference only, subject to the actual product!
Application
Laser welding can be applied to various metarials like titanium, nickel, tin, zinc, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, as well as steel, Kovar and other alloys. Various dissimilar metals is also available, such as copper-nickel, nickel-titanium, copper-titanium, titanium-molybdenum, brass-copper, and low carbon steel-copper. At the same time, the welding machine is widely used in industries of mobile phone communications, electronic components, glasses and watches, jewelry, hardware products, precision equipment, medical equipment, auto parts, craft gifts and other design areas.
